Specification
| General | Mechanical | ||
| resolution(bit) | 18-20 | outer/inner /height (mm) | 52/17/7.6 |
| maximum static error | ±0.01° | allowable mounting eccentricity (mm) | ±0.1 |
| repetitive error(lsb) | ±2 | allowable axial mounting tolerance (mm) | 0.6±0.1 |
| maximum operational speed(rpm) | 8000 | rotor inertia (kg·mm2) | 1.18 |
| measurement range | single turn | weight(g) | 13 |
| rotation direction | adjustable cw/ccw | material (stator/rotor) | FR-4 |
| Environmental | Electrical | ||
| emc | iec 61000-6-2 iec 61000-6-4 | supply voltage | 5~24v |
| operating temperature | -40℃-+125℃ | current consumption | 120~130ma |
| storage temperature | -50℃-+100℃ | serial output | 6/8-pin connector 6/8-core cable |
| relative humidity | 0-99% | communication | ssi/biss-c/rs-422/rs-485 |
shock endurance/ functional | 100g/11ms | ||
| vibration functional | 20g(10-2000hz) | ||
| protection | ip 40 | ||

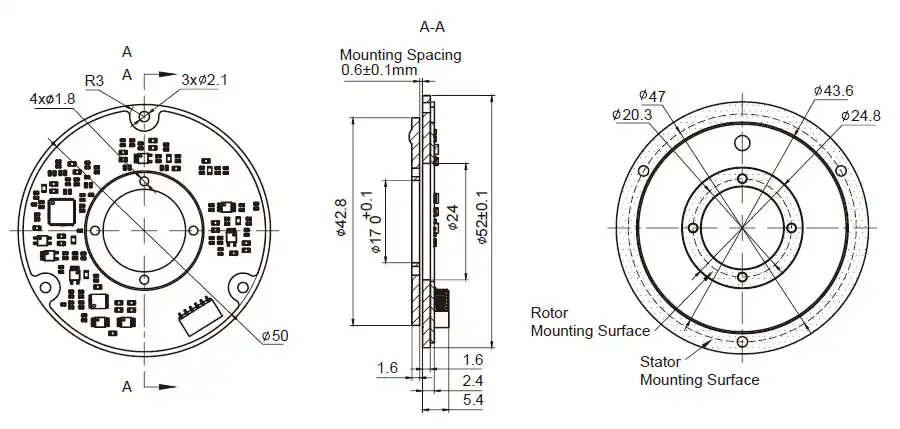

Drawing
Ordering Code
B:biss-c interface/S:ssi interface
R:rs-422 serial interface/E:rs-485
05: 5V (default)
12: 12V
24: 24V
01:-30°C~+85°C(efault)
02:-40°C~+125°C
15:15-bit(32768)
17:17-bit(131072)
18:18-bit(262144)
19:19-bit(524288)
20:20-bit(1048576)
21:21-bit(2097152)
22:22-bit(4194304)
A: Single-turn absolute
60: Outer diameter 60mm
25: Inner diameter 25mm
C: single absolute encoder
D: Upper/lower dual absolute encoder
DP: Inner/outer dual absolute encoder
Illustrated by example
C–25–60–A–19–01–05–S indicates a C-series single-turn absolute encoder with a 25 mm bore diameter and 60 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C to ~+125 °C, the power supply is 5~30 V, and the output communication protocol is SSI.
D–21–58–A–19–02–05–E indicates a D-series absolute dual encoder with a 21 mm bore diameter and 58 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
DP–20–50–A–19–02–05–E indicates a DP-series absolute dual encoder with a 20 mm bore diameter and 50 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
Case studies (Customized frameless motors developed with our clients)
Additional Info

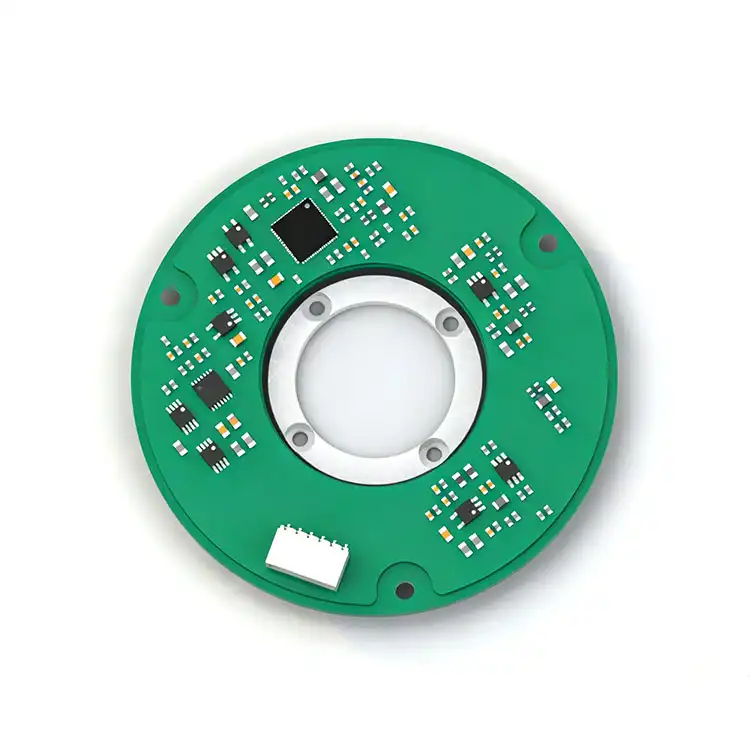

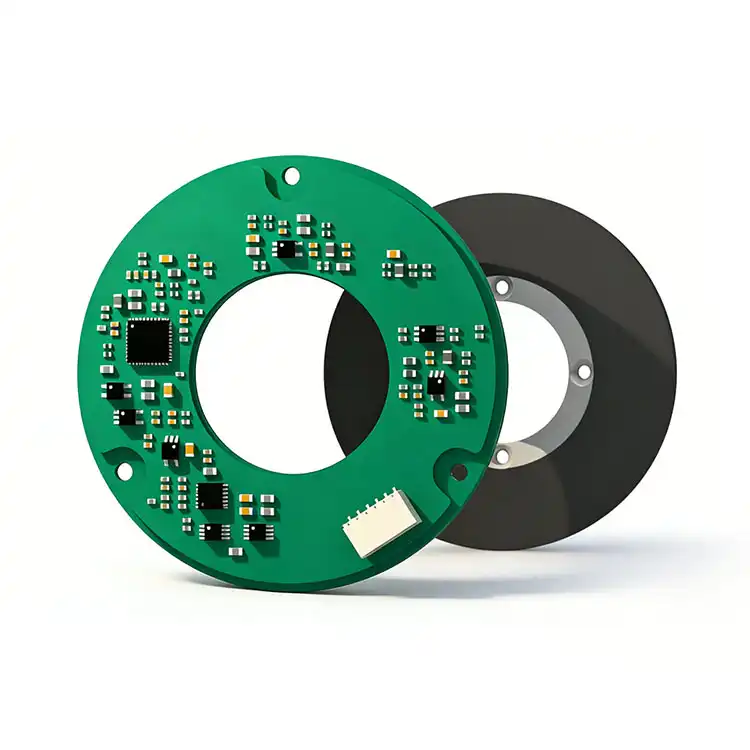

The product consists of three components: a stator and two rotors. When energized,the stator wirelessly transmits power to the rotors while sensing their electromagnetic fields. The rotors require no power supply, receiving stator energy in real-time to generate a regular electromagnetic field through their coils
The dual-track design enables absolute angle output. The non-contact, frictionless interface between rotor and stator integrates angle calculation circuitry on the stator. Proprietary technology achieves low power consumption while integrating multiple highspeed digital interfaces.
Both the rotor and stator feature hollow ring-shaped thin-film structures. The large hollow design facilitates easy passage through shafts, cables, and other components. During installation, the stator and rotor must be mounted coaxially and parallel to each other to ensure efficient energy transfer and electromagnetic field induction between them.
MOSRAC thin-profile inductive encoders find extensive applications in medical, defense, aerospace, industrial automation, and robotics sectors.
Features & Benefits:
✔️Non-contact
✔️Hollow shaft
✔️Compact Design
✔️High Precision
✔️Absolute Value
✔️Low Power Consumption
✔️Maintenance-free
✔️Coupling-free
✔️Easy Installation
✔️Anti-magnetic Interference
✔️Vibration and Shock ResistantV
✔️Customizable
Download
C1752 Inductive Rotary Absolute Encoders Datasheet.pdf
OD: 52mm|Height: 7.6mm
