Specification
| General | Mechanical | ||
| resolution(bit) | 4096/18-20 (22extension) | outer/inner /height (mm) | 58/(21-18)/7.6 |
| maximum static error | ±0.008° | allowable mounting eccentricity (mm) | ±0.1 |
| repetitive error(lsb) | ±2 | allowable axial mounting tolerance (mm) | 0.6±0.1 |
| maximum operational speed(rpm) | 6000 | rotor inertia (kg·mm2) | 1.4 |
| measurement range | single turn | weight(g) | 25 |
| rotation direction | adjustable cw/ccw | material (stator/rotor) | FR-4 |
| Environmental | Electrical | ||
| emc | iec 61000-6-2 iec 61000-6-4 | supply voltage | 5~24v |
| operating temperature | -40℃-+125℃ | current consumption | <240ma |
| storage temperature | -50℃-+85℃ | serial output | hc-1.25-8pwt connector |
| relative humidity | 0-99% | communication | ssi/biss-c/uart/abz |
shock endurance/ functional | 100g/11ms | ||
| vibration functional | 20g(10-2000hz) | ||
| protection | ip 40 | ||

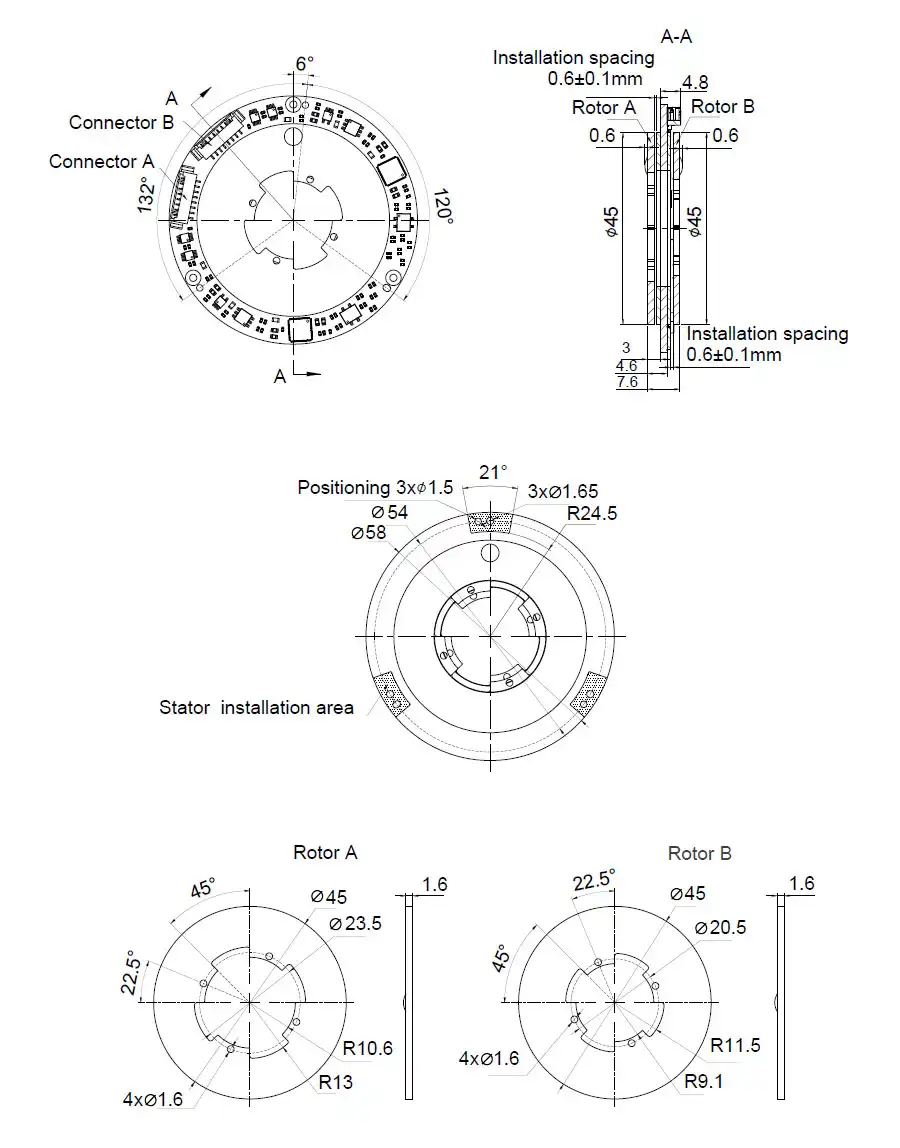

Drawing
Ordering Code
B:biss-c interface/S:ssi interface
R:rs-422 serial interface/E:rs-485
05: 5V (default)
12: 12V
24: 24V
01:-30°C~+85°C(efault)
02:-40°C~+125°C
15:15-bit(32768)
17:17-bit(131072)
18:18-bit(262144)
19:19-bit(524288)
20:20-bit(1048576)
21:21-bit(2097152)
22:22-bit(4194304)
A: Single-turn absolute
60: Outer diameter 60mm
25: Inner diameter 25mm
C: single absolute encoder
D: Upper/lower dual absolute encoder
DP: Inner/outer dual absolute encoder
Illustrated by example
C–25–60–A–19–01–05–S indicates a C-series single-turn absolute encoder with a 25 mm bore diameter and 60 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C to ~+125 °C, the power supply is 5~30 V, and the output communication protocol is SSI.
D–21–58–A–19–02–05–E indicates a D-series absolute dual encoder with a 21 mm bore diameter and 58 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
DP–20–50–A–19–02–05–E indicates a DP-series absolute dual encoder with a 20 mm bore diameter and 50 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
Case studies (Customized frameless motors developed with our clients)
Additional Info

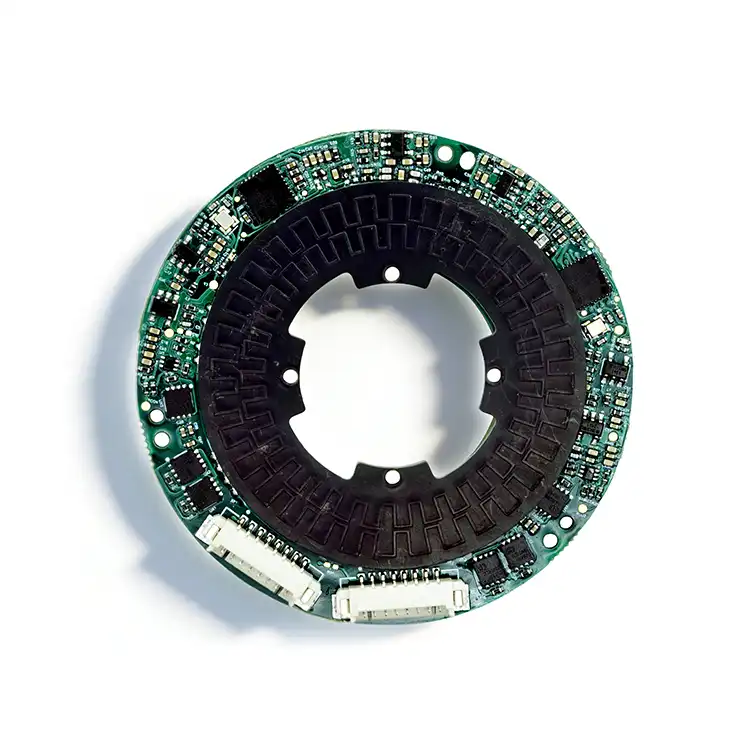

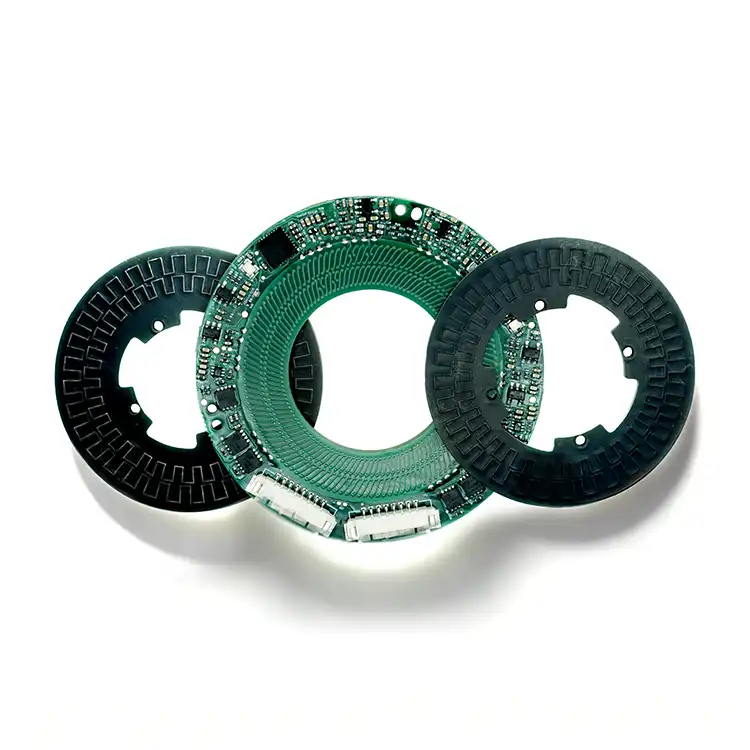

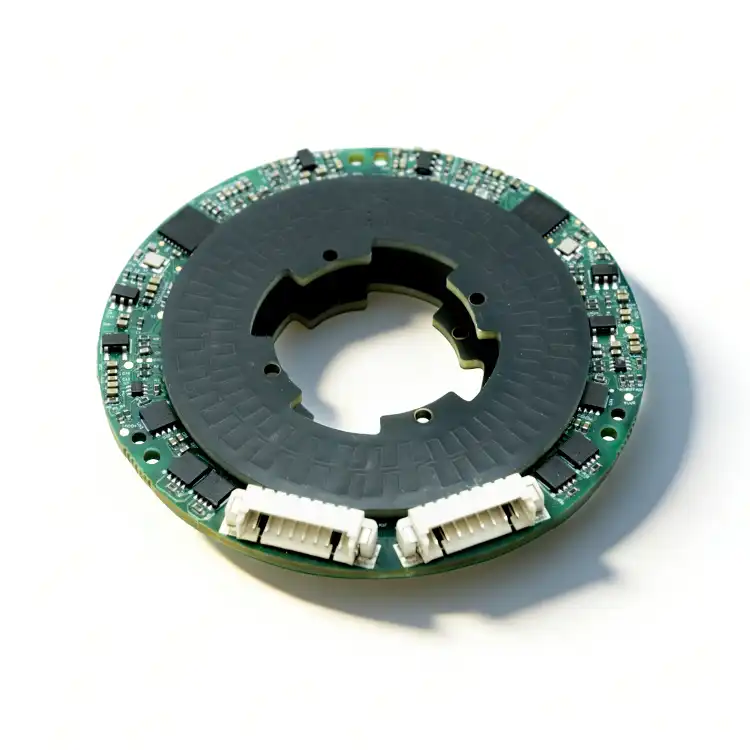

The D2158 inductive encoder instantly provides precise, absolute angular positioning upon power-up without requiring initial movement. Its rugged, non-contact, low-profile hollow-shaft design allows for easy integration without complex mounting hardware, ensuring reliability in harsh environments.
Supporting high-resolution BiSS-C, UART, SSI, and ABZ interfaces, it offers customizable options to fit specific needs. Crucially, its dual independent output signals provide built-in redundancy. This fail-safe mechanism maximizes reliability, making it an ideal solution for critical applications in robotics, aerospace, defense, industrial automation, and medical equipment.
Features & Benefits:
✔️Non-contact
✔️Hollow shaft
✔️Low profile
✔️High precision
✔️True absolute system
✔️Low power consumption
✔️No maintenance
✔️No bearings
✔️Easy to install
✔️Tolerance to EMI / RFI
✔️Shock and Vibration Tolerance
✔️Customized extension options
Download
D2158 Inductive Rotary Absolute Encoders Datasheet.pdf
OD: 58mm|Height: 7.6mm
