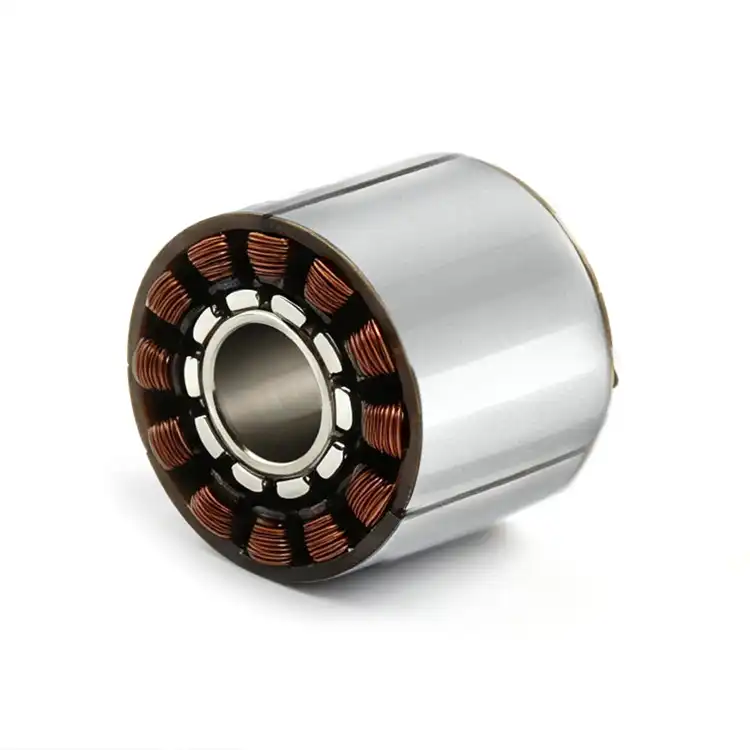

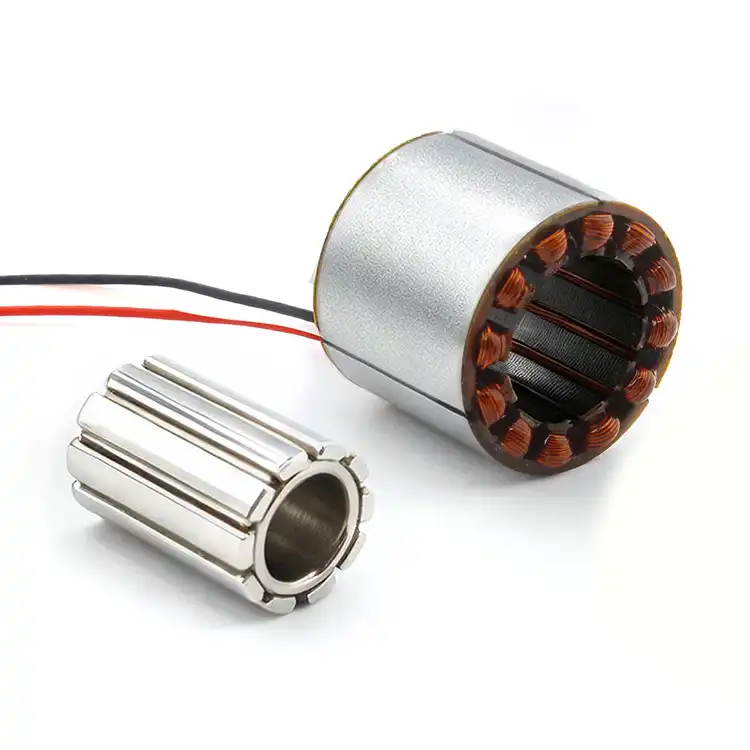

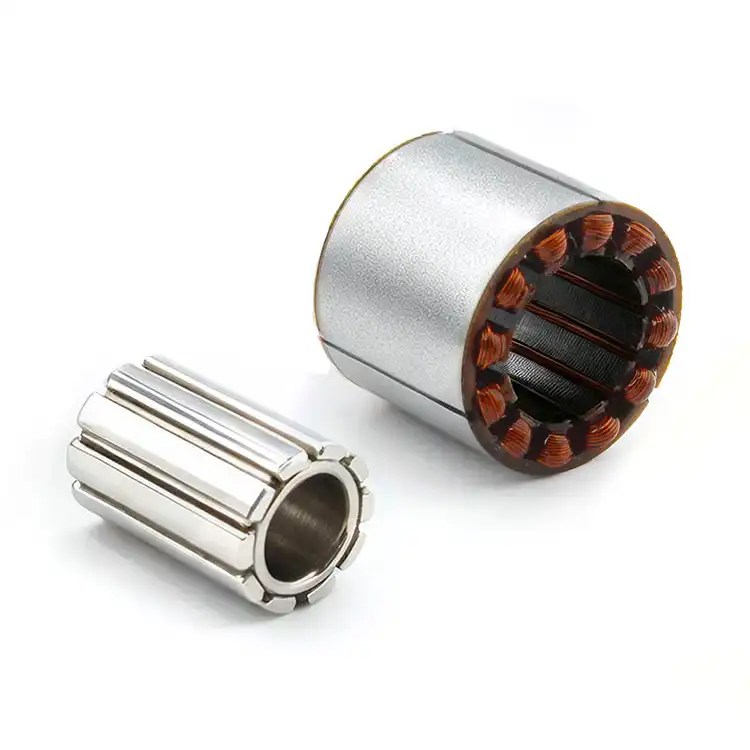

Specification
| Model | U1308 | |
| DC voltage(VDC) | 24 | |
| Rated Output(W) | 3.7 | |
| Rated torque(N.m) | 0.0044 | |
| Instant Max Torque(N.m) | 0.016 | |
| Rated Current(A) | 0.4 | |
| Instant Max Current(A) | 1.7 | |
| Rated Speed(rpm) | 8000 | |
| Maximum speed(rpm) | 23000 | |
| Torque Parameter(Nm/A) | 0.0088 | |
| Rotor inertia(kg.cm²) | 0.00013 | |
| Back EMF coefficient(V/Krpm) | 0.72 | |
| Resistance(ohms@20℃) | 7.26 | |
| Inductance(mH) | 0.628 | |
| Number of pole-pairs(2P) | 5 | |
| Weight(kg) | 0.005 | |
| Size(mm) | L1 (Stator stack height) | 5 |
| L2 (Rotor height) | 5.1 | |
| L3 (Overall height) | 8 | |
Applicable Inductive encoders
Drawing
Download

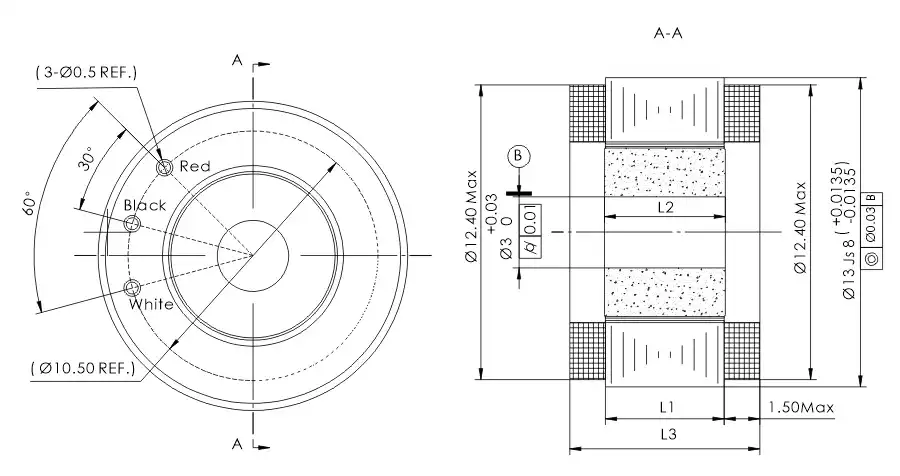

U1308 Torque Motor Outline Drawing.pdf
OD: 13mm|Height: 8mm
U13 Series 13MM Miniature Frameless Inrunner Torque Motors Catalog.pdf
OD: 13mm|Height: 8mm optional
OD: 13mm|Height: 8mm
-
-
-
-
