Specification
| Model | U4672-4000 | |
| DC Voltage(VDC) | 48 | |
| Rated Output(W) | 366 | |
| Rated torque(N.m) | 1 | |
| Instant Max Torque(N.m) | 2.8 | |
| Rated Current(A) | 11.3 | |
| Instant Max Current(A) | 33 | |
| Rated Speed(rpm) | 3500 | |
| Maximum Speed(rpm) | 6000 | |
| Torque Parameter(N.m/A) | 0.09 | |
| Rotor inertia(kg.m²) | 0.0018 | |
| Back EMF coefficient(V/Krpm) | 8 | |
| Resistance(Ω) | 0.133 | |
| Coil Inductance(mH) | 0.1 | |
| Number of Pole-pairs(2P) | 10 | |
| Weight(kg) | 0.586 | |
| Size(mm) | L1 (Stator stack height) | 61.5 |
| L2 (Rotor height) | 62 | |
| L3 (Overall height) | 72 | |

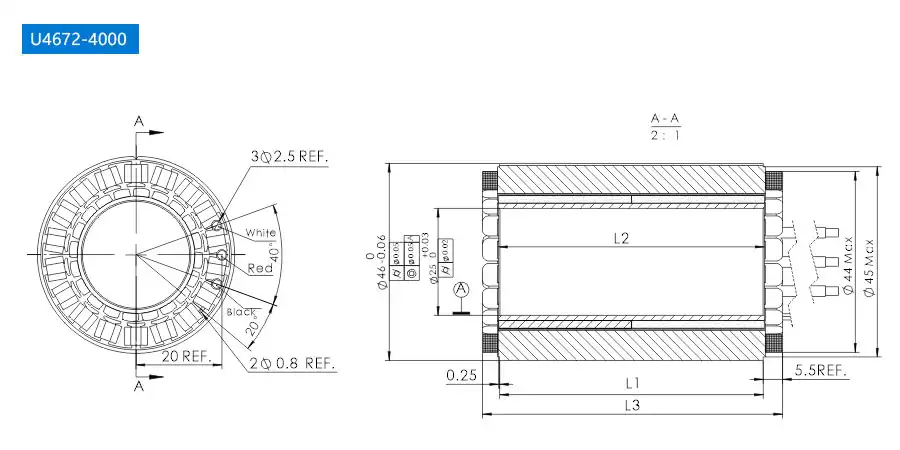

Drawing
Download
U4672-4000 Torque Motor Outline Drawing.pdf
OD: 46mm|Height: 72mm
U4672-4000 Frameless Motor for Linear Joint Catalog.pdf
OD: 46mm|Height: 72mm optional
OD: 46mm|Height: 72mm
-
-
-
-
Frequently bought together - Magnetic encoders
Direct drives need high-quality position signals to ensure optimal performance. Perfect measuring signals can enhance the surface quality of machined workpieces, reduce the machine frame's vibrations, minimize velocity-dependent motor noise, and prevent excessive heat generation in the motor.
Mosrac recommends using a magnetic encoder to enhance the accuracy, speed stability, and thermal behavior of direct drive axes. Because there is no mechanical transmission between the encoder and the feed unit, the position signals are not susceptible to inaccuracies or delays.
Custom combinations are available on request and contact us.
