Specification
| Model | UE1506 | |
| DC voltage(VDC) | 12 | |
| Rated Output(W) | 2.7 | |
| Rated torque(N.m) | 0.0035 | |
| Instant Max Torque(N.m) | 0.01 | |
| Rated Current(A) | 0.3 | |
| Instant Max Current(A) | 0.85 | |
| Rated Speed(rpm) | 7500 | |
| Maximum speed(rpm) | 11400 | |
| Torque Parameter(Nm/A) | 0.012 | |
| Rotor inertia(kg.cm²) | 0.0006 | |
| Back EMF coefficient(V/Krpm) | 1.05 | |
| Resistance(ohms@20℃) | 10 | |
| Inductance(mH) | 0.42 | |
| Number of pole-pairs(2P) | 5 | |
| Weight(kg) | ||
| Cogging Torque (mN.m) | (REF.) | |
| Size(mm) | L1 (Stator stack height) | |
| L2 (Rotor height) | ||
| L3 (Overall height) | ||

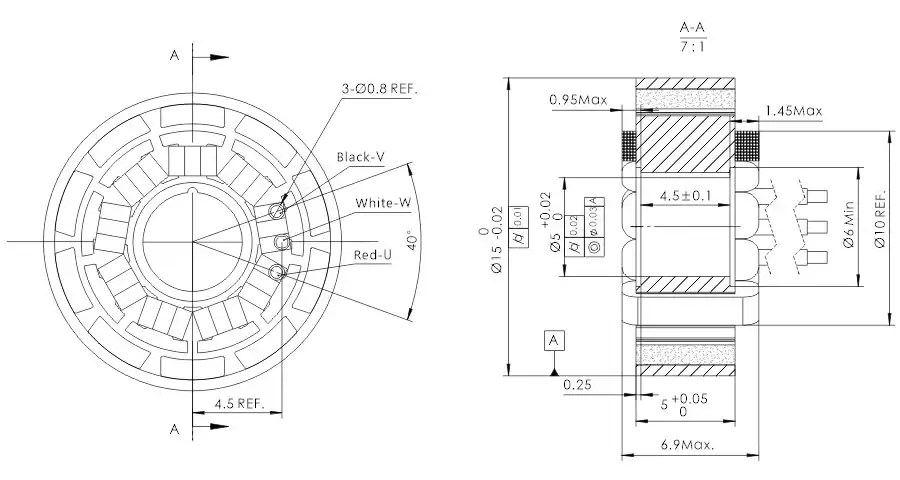

Drawing
Case studies (Customized frameless motors developed with our clients)
Additional Info
Download
UE15066 Torque Motor Outline Drawing.pdf
OD: 15mm|Height: 6.9mm
UE1506 12V Frameless Outrunner Motor Catalog.pdf
OD: 15mm|Height: 6.9mm optional
OD: 15mm|Height: 6.9mm
-
-
-
-
