Specification
| General | Mechanical | ||
| resolution(bit) | 4096/18-20 (23extension) | outer/inner /height (mm) | 78/(35/31)/7.6 |
| maximum static error | ±0.008° | allowable mounting eccentricity (mm) | ±0.1 |
| repetitive error(lsb) | ±2 | allowable axial mounting tolerance (mm) | 0.6±0.1 |
| maximum operational speed(rpm) | 6000 | rotor inertia (kg·mm2) | 5.5 |
| measurement range | single turn | weight(g) | 55 |
| rotation direction | adjustable cw/ccw | material (stator/rotor) | FR-4 |
| Environmental | Electrical | ||
| emc | iec 61000-6-2 iec 61000-6-4 | supply voltage | 5~24v |
| operating temperature | -40℃-+125℃ | current consumption | <240ma |
| storage temperature | -50℃-+85℃ | serial output | hc-1.25-8pwt connector |
| relative humidity | 0-99% | communication | ssi/biss-c/uart/abz |
shock endurance/ functional | 100g/11ms | ||
| vibration functional | 20g(10-2000hz) | ||
| protection | ip 40 | ||

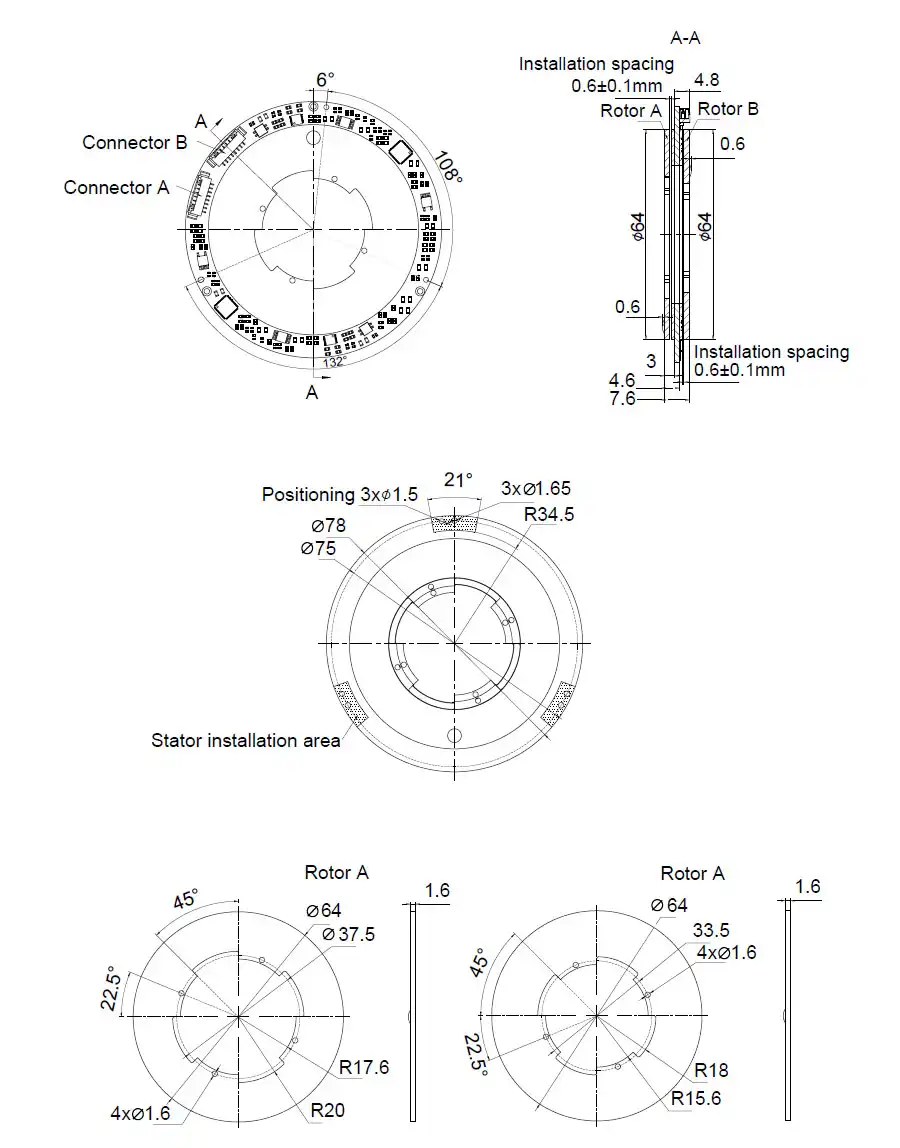

Drawing
Ordering Code
B:biss-c interface/S:ssi interface
R:rs-422 serial interface/E:rs-485
05: 5V (default)
12: 12V
24: 24V
01:-30°C~+85°C(efault)
02:-40°C~+125°C
15:15-bit(32768)
17:17-bit(131072)
18:18-bit(262144)
19:19-bit(524288)
20:20-bit(1048576)
21:21-bit(2097152)
22:22-bit(4194304)
A: Single-turn absolute
60: Outer diameter 60mm
25: Inner diameter 25mm
C: single absolute encoder
D: Upper/lower dual absolute encoder
DP: Inner/outer dual absolute encoder
Illustrated by example
C–25–60–A–19–01–05–S indicates a C-series single-turn absolute encoder with a 25 mm bore diameter and 60 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C to ~+125 °C, the power supply is 5~30 V, and the output communication protocol is SSI.
D–21–58–A–19–02–05–E indicates a D-series absolute dual encoder with a 21 mm bore diameter and 58 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
DP–20–50–A–19–02–05–E indicates a DP-series absolute dual encoder with a 20 mm bore diameter and 50 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
Case studies (Customized frameless motors developed with our clients)
Additional Info

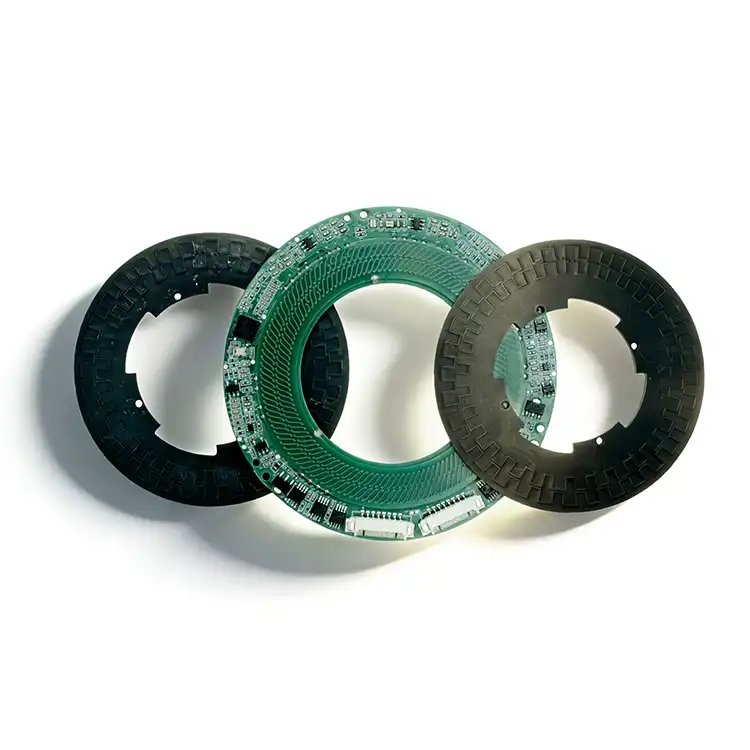

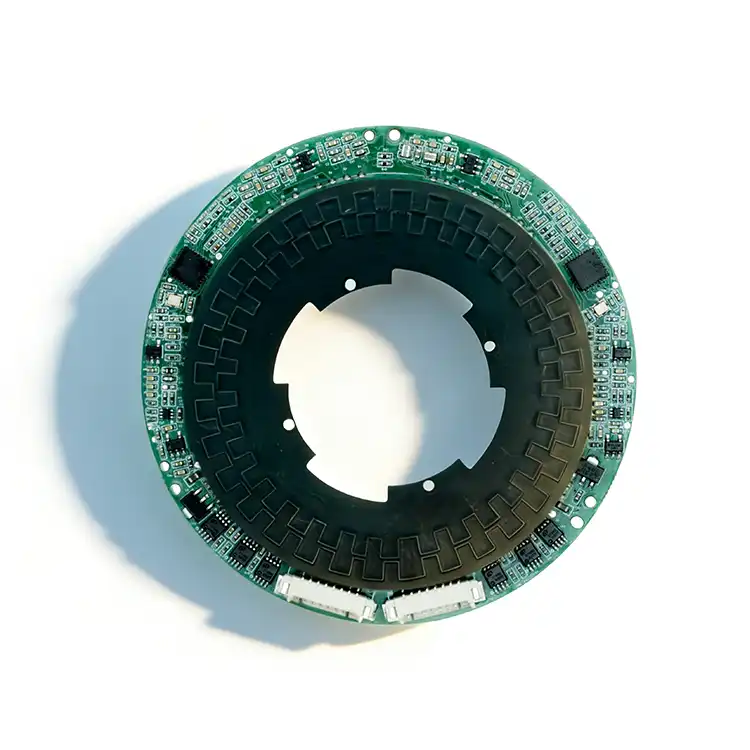

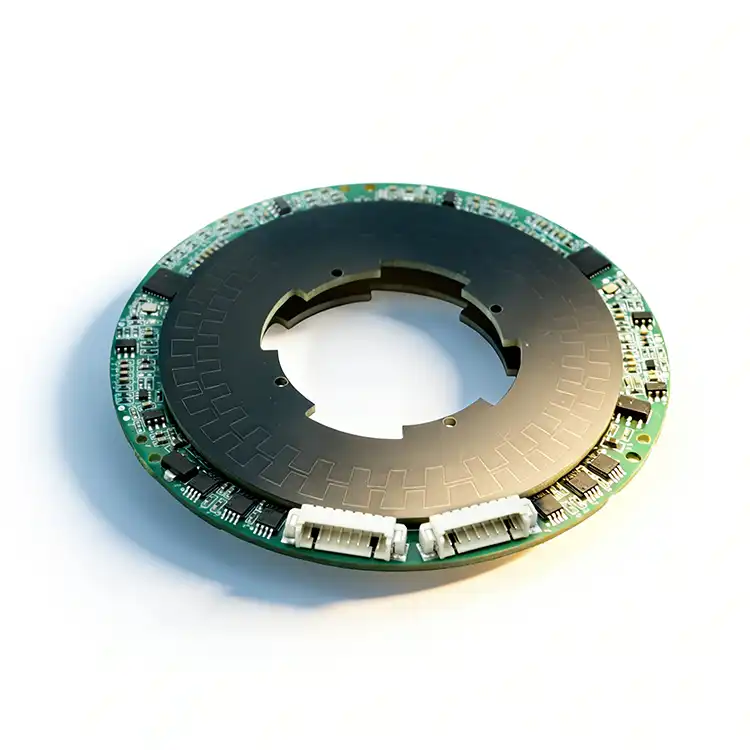

The D3178 inductive encoder provides precise, absolute angular positioning immediately upon power-up without requiring motion. Its non-contact, low-profile design ensures high reliability in harsh environments and simplifies integration into systems like direct-drive motors or slip-rings without specialized mounting hardware.
Supporting high-resolution BiSS-C, UART, SSI, and ABZ interfaces, it offers customizable options for unique needs. Most importantly, its dual-output mechanism provides independent signal redundancy, significantly boosting safety. This makes it an ideal, fail-safe solution for critical missions in aerospace, defense, medical, and advanced robotics.
Features & Benefits:
✔️Non-contact
✔️Hollow shaft
✔️Low profile
✔️High precision
✔️True absolute system
✔️Low power consumption
✔️No maintenance
✔️No bearings
✔️Easy to install
✔️Tolerance to EMI / RFI
✔️Shock and Vibration Tolerance
✔️Customized extension options
Download
D3178 Inductive Rotary Absolute Encoders Datasheet.pdf
OD: 78mm|Height: 7.6mm
Frequently bought together - Magnetic encoders
Direct drives need high-quality position signals to ensure optimal performance. Perfect measuring signals can enhance the surface quality of machined workpieces, reduce the machine frame's vibrations, minimize velocity-dependent motor noise, and prevent excessive heat generation in the motor.
Mosrac recommends using a magnetic encoder to enhance the accuracy, speed stability, and thermal behavior of direct drive axes. Because there is no mechanical transmission between the encoder and the feed unit, the position signals are not susceptible to inaccuracies or delays.
Custom combinations are available on request and contact us.
