Specification
| General | Mechanical | ||
| resolution(bit) | 15-17 | outer/inner /height (mm) | 14.8/2/3.6 |
| maximum static error | ±0.03° | allowable mounting eccentricity (mm) | ±0.1 |
| repetitive error(lsb) | ±2 | allowable axial mounting tolerance (mm) | 0.4±0.1 |
| maximum operational speed(rpm) | 6000 | rotor inertia (kg·mm2) | 0.006 |
| measurement range | single turn | weight(g) | 2 |
| rotation direction | adjustable cw/ccw | material (stator/rotor) | FR-4 |
| Environmental | Electrical | ||
| emc | iec 61000-6-2 iec 61000-6-4 | supply voltage | 5v |
| operating temperature | -40℃-+125℃ | current consumption | <80ma |
| storage temperature | -50℃-+100℃ | serial output | 6-pin connector 6-core cable |
| relative humidity | 0-99% | communication | ssi/biss-c/rs-422/rs-485 |
shock endurance/ functional | 100g/11ms | ||
| vibration functional | 20g(10-2000hz) | ||
| protection | ip 40 | ||

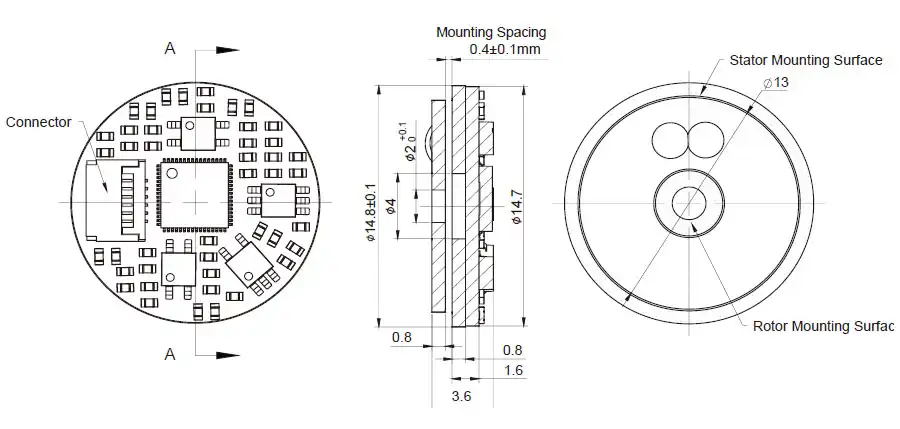

Drawing
Ordering Code
B:biss-c interface/S:ssi interface
R:rs-422 serial interface/E:rs-485
05: 5V (default)
12: 12V
24: 24V
01:-30°C~+85°C(efault)
02:-40°C~+125°C
15:15-bit(32768)
17:17-bit(131072)
18:18-bit(262144)
19:19-bit(524288)
20:20-bit(1048576)
21:21-bit(2097152)
22:22-bit(4194304)
A: Single-turn absolute
60: Outer diameter 60mm
25: Inner diameter 25mm
C: single absolute encoder
D: Upper/lower dual absolute encoder
DP: Inner/outer dual absolute encoder
Illustrated by example
C–25–60–A–19–01–05–S indicates a C-series single-turn absolute encoder with a 25 mm bore diameter and 60 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C to ~+125 °C, the power supply is 5~30 V, and the output communication protocol is SSI.
D–21–58–A–19–02–05–E indicates a D-series absolute dual encoder with a 21 mm bore diameter and 58 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
DP–20–50–A–19–02–05–E indicates a DP-series absolute dual encoder with a 20 mm bore diameter and 50 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
Case studies (Customized frameless motors developed with our clients)
Additional Info

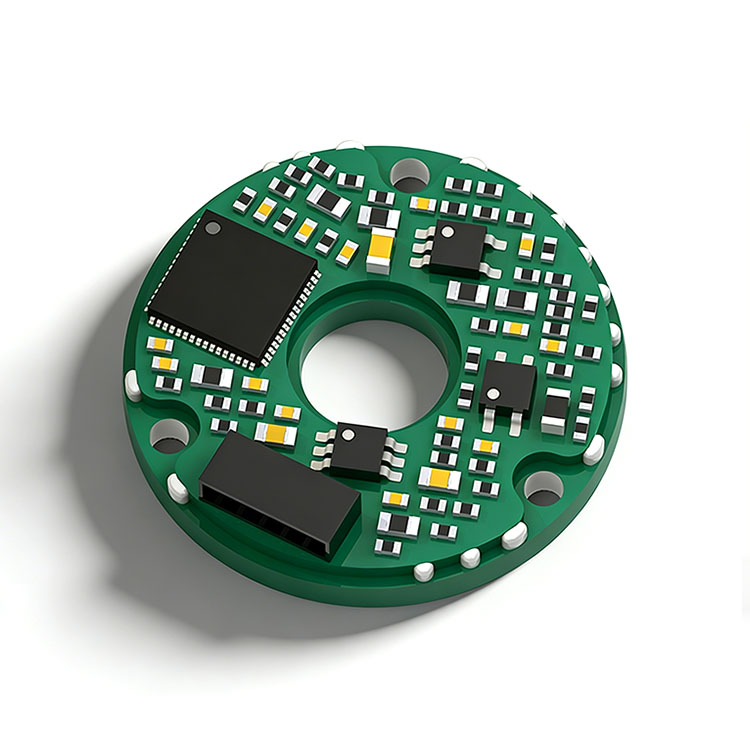

The product consists of a stator and a rotor. After the stator is powered, it wirelessly transmits energy to the rotor and induces the rotor's electromagnetic field. The rotor requires no independent power supply, receives energy from the stator in real time, and applies it to the coil to form a regular electromagnetic field.
Both the rotor and stator are of circular thin-sheet structure. For use, the stator and The rotor needs to be installed coaxially and parallel to facilitate energy transmission and electromagnetic field induction between them.
Adopting a dual-code track design for absolute angle output, the rotor and stator feature non-contact operation with no friction. The stator integrates an angle calculation circuit, and proprietary technology is applied to achieve low power consumption and integrate a variety of high-speed digital interfaces.
MOSRAC thin inductive encoders are widely applicable in medical, national defense, aerospace, industrial automation, and robotics fields.
Features & Benefits:
✔️Non-contact
✔️Hollow shaft
✔️Compact Design
✔️High Precision
✔️Absolute Value
✔️Low Power Consumption
✔️Maintenance-free
✔️Coupling-free
✔️Easy Installation
✔️Anti-magnetic Interference
✔️Vibration and Shock ResistantV
✔️Customizable
Download
C0214 Inductive Rotary Absolute Encoders Datasheet.pdf
OD: 14.8mm|Height: 3.6mm
