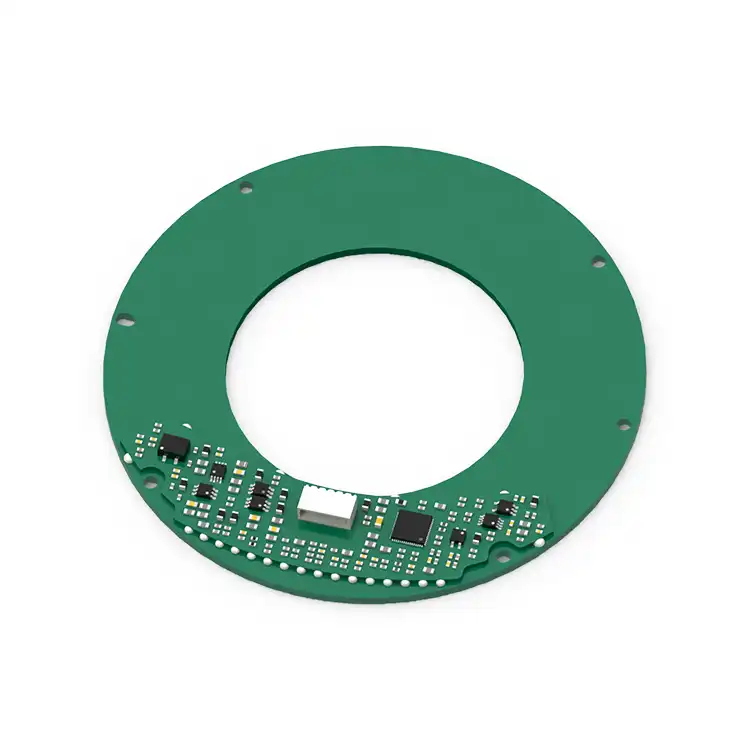

Specification
| General | Mechanical | ||
| resolution(bit) | 18-20 | outer/inner /height (mm) | 80/35/8 |
| maximum static error | ±0.008° | allowable mounting eccentricity (mm) | ±0.1 |
| repetitive error(lsb) | ±2 | allowable axial mounting tolerance (mm) | 0.6±0.1 |
| maximum operational speed(rpm) | 8000 | rotor inertia (kg·mm2) | 8.6 |
| measurement range | single turn | weight(g) | 30 |
| rotation direction | adjustable cw/ccw | material (stator/rotor) | FR-4 |
| Environmental | Electrical | ||
| emc | iec 61000-6-2 iec 61000-6-4 | supply voltage | 5~24v |
| operating temperature | -40℃-+125℃ | current consumption | 120~130ma |
| storage temperature | -50℃-+100℃ | serial output | 6/8-pin connector 6/8-core cable |
| relative humidity | 0-99% | communication | ssi/biss-c/rs-422/rs-485 |
shock endurance/ functional | 100g/11ms | ||
| vibration functional | 20g(10-2000hz) | ||
| protection | ip 40 | ||

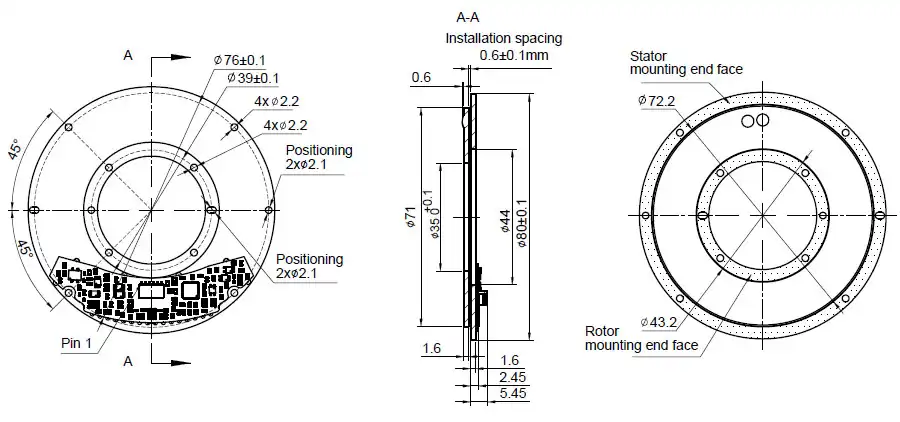

Drawing
Ordering Code
B:biss-c interface/S:ssi interface
R:rs-422 serial interface/E:rs-485
05: 5V (default)
12: 12V
24: 24V
01:-30°C~+85°C(efault)
02:-40°C~+125°C
15:15-bit(32768)
17:17-bit(131072)
18:18-bit(262144)
19:19-bit(524288)
20:20-bit(1048576)
21:21-bit(2097152)
22:22-bit(4194304)
A: Single-turn absolute
60: Outer diameter 60mm
25: Inner diameter 25mm
C: single absolute encoder
D: Upper/lower dual absolute encoder
DP: Inner/outer dual absolute encoder
Illustrated by example
C–25–60–A–19–01–05–S indicates a C-series single-turn absolute encoder with a 25 mm bore diameter and 60 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C to ~+125 °C, the power supply is 5~30 V, and the output communication protocol is SSI.
D–21–58–A–19–02–05–E indicates a D-series absolute dual encoder with a 21 mm bore diameter and 58 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
DP–20–50–A–19–02–05–E indicates a DP-series absolute dual encoder with a 20 mm bore diameter and 50 mm outer diameter. “19” denotes 19-bit single-turn absolute resolution. The operating temperature range is −40 °C ~ +125 °C, the power supply is 5 V, and the output communication protocol is RS-485.
Case studies (Customized frameless motors developed with our clients)
Additional Info

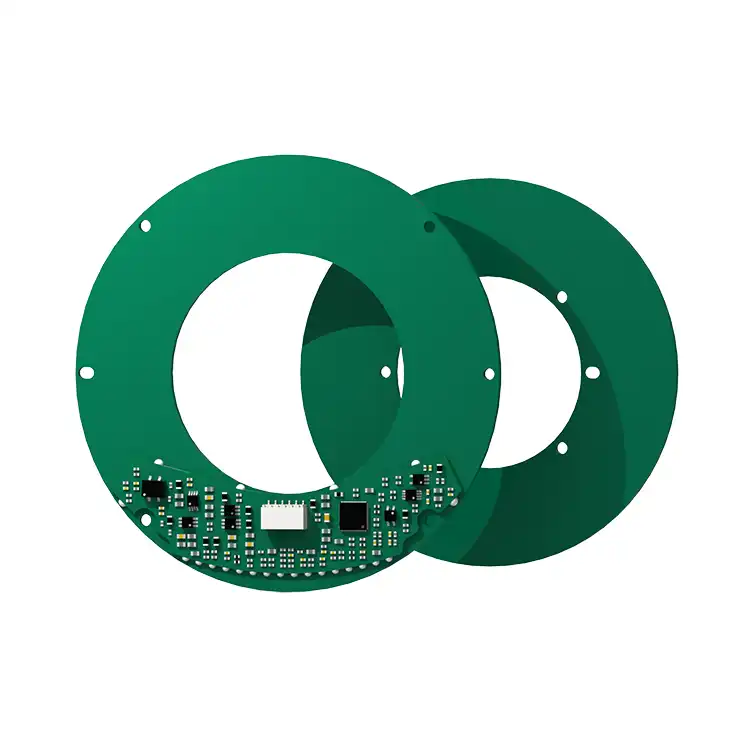

Its hollow shaft and compact, low-profile design allow easy integration with through-shafts, slip rings, direct drive motors, and systems with cables, pipes, or optical fibers. Installation is simple and does not require high-precision mounting parts or couplings.
MOSRAC absolute rotary encoders are widely used in robotics, medical equipment, industrial automation, aerospace, and other industries, offering reliable solutions for applications such as environmental monitoring, safety systems, life sciences, semiconductors, chemicals, and energy.
Features & Benefits:
✔️Non-contact
✔️Hollow shaft
✔️Compact Design
✔️High Precision
✔️Absolute Value
✔️Low Power Consumption
✔️Maintenance-free
✔️Coupling-free
✔️Easy Installation
✔️Anti-magnetic Interference
✔️Vibration and Shock ResistantV
✔️Customizable
Download
C3580 Inductive Rotary Absolute Encoders Datasheet.pdf
OD: 80mm|Height: 8mm
