Why the Industry Needs Them

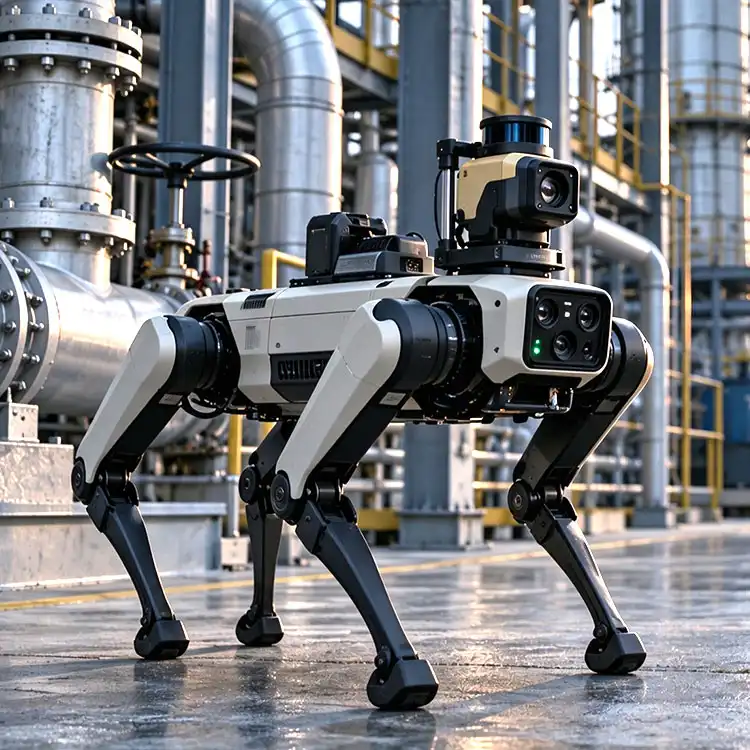

Quadruped robots walk, trot, and climb across uneven terrain. They are used for inspection, research, security, and logistics, often in places where wheeled vehicles cannot go.
Each leg has several actuated joints, typically hip, thigh, and knee. These joints must produce high torque for short bursts, such as when the robot jumps or recovers from a slip.
Weight is a constant constraint. Heavy leg actuators increase leg inertia, which slows motion and drains the battery faster. Designers need joints that are compact, light, and energy efficient.
Joints also take repeated impacts with the ground, so the actuator must respond quickly and tolerate shock loads.
What Frameless Motors Change
A frameless torque motor supplies only the rotor and stator. The designer builds them directly into the joint housing, which removes the separate motor casing and shaft.
This approach changes several things:
- High torque density, so a slim motor delivers strong output at the joint.
- Low gear ratios, which improve backdrivability and make force control easier.
- Hollow bore, which lets cables pass through the joint and keeps the leg clean.
- Fewer parts, which reduces weight and simplifies assembly.
- Flat, short profile, which fits tight leg geometries.
- Custom sizing, so the motor matches the joint design.
Combined with a compact reducer and an encoder, a frameless motor forms an integrated joint module.
Looking Ahead
Quadruped robots are moving into more commercial and industrial use, where reliability and efficiency matter as much as agility. These requirements place more demand on joint design.
Frameless motors fit this direction because they allow tighter integration of motor, reducer, encoder, and drive in one module. This supports lighter legs and more consistent joint performance.
They are already common in legged robot joints, and they remain a practical choice as designs mature. Improvements in magnet materials, thermal management, and drive electronics will determine how far joint performance can advance.
