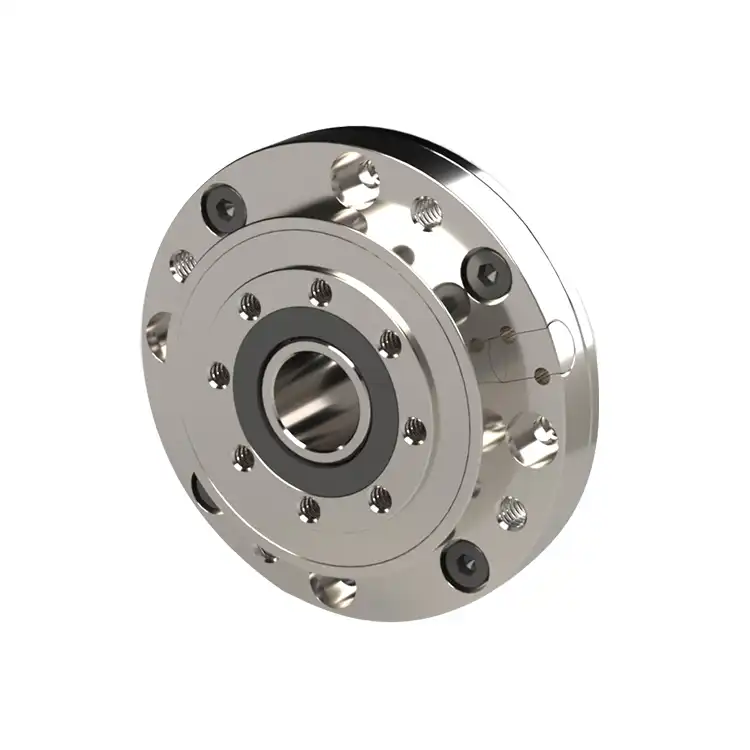

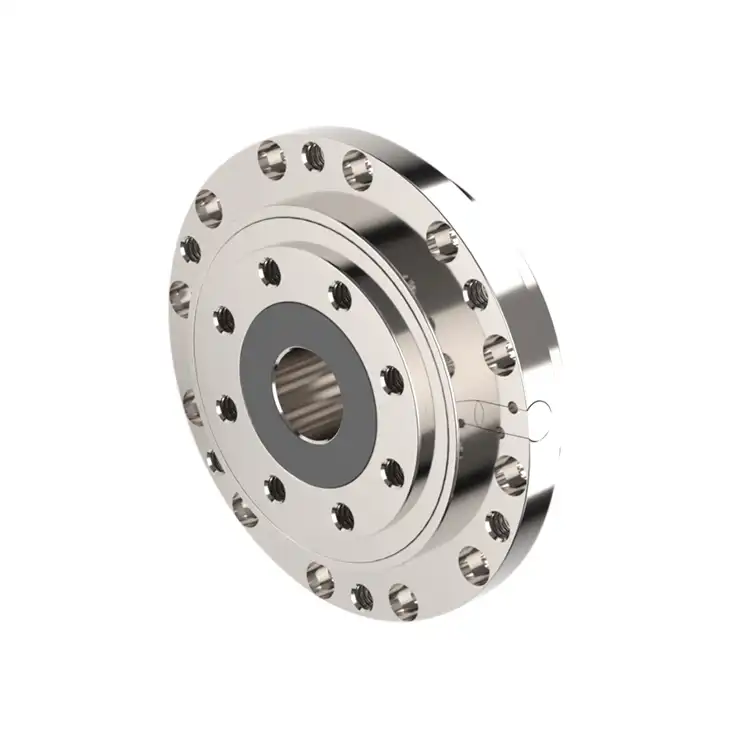

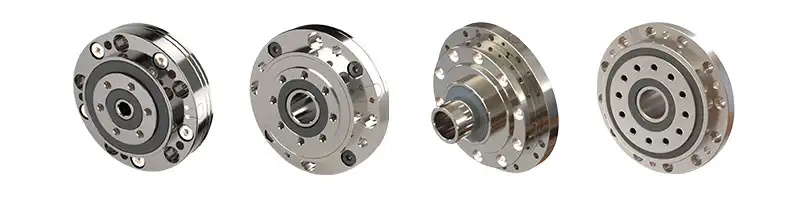

RV Reducers (Cycloidal Reducers)Industrial robot joint-specific reducer featuring high precision, high rigidity, and high torque
The RV reducers are specialized reducers designed for industrial robot joints, featuring a cycloidal pinwheel as their core structure and possessing high precision, rigidity, and load-bearing capacity.
Comparison Table of Cycloidal RV Reducers
| Mode | Gear ratioShaft rotation(R)/Housing rotation | Torque rigidity value(Nm/arc.min) | Rated torque(Nm) | Instant Max Torque(kgf-m) | Maximum output speed(RPM) | Backlash(MAX.arc.min.) | Weight(kg) | |||||||||||
| J11-52 | 30~120/31~121 | 25 | 20 | 60 | 100 | 1' | 0.37 | |||||||||||
| J14-70 | 30~120/31~121 | 30 | 40 | 85 | 100 | 1' | 0.5 | |||||||||||
| J17-80 | 30~120/31~121 | 35 | 80 | 190 | 100 | 1' | 0.6 | |||||||||||
| J20-100 | 30~120/31~121 | 40 | 100 | 240 | 100 | 1' | 1.1 | |||||||||||

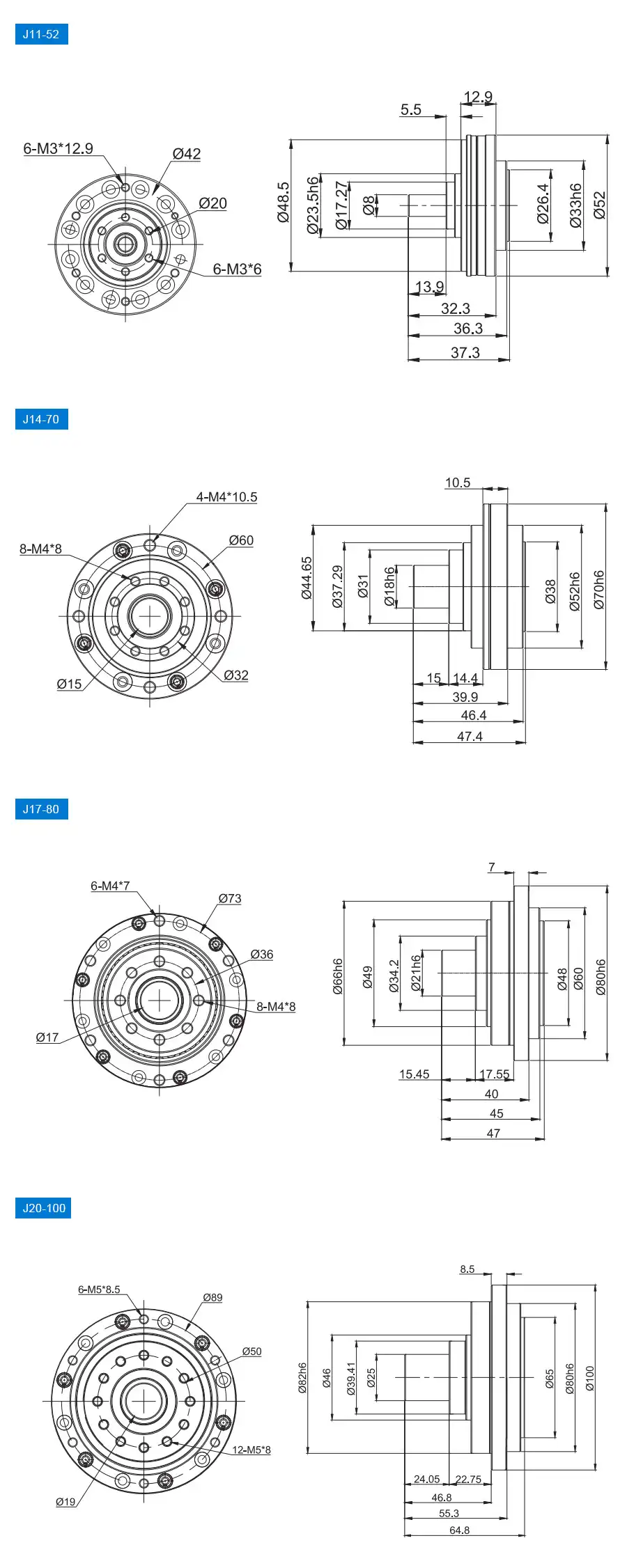

Drawing
Download
